Shelving.com
Unirak

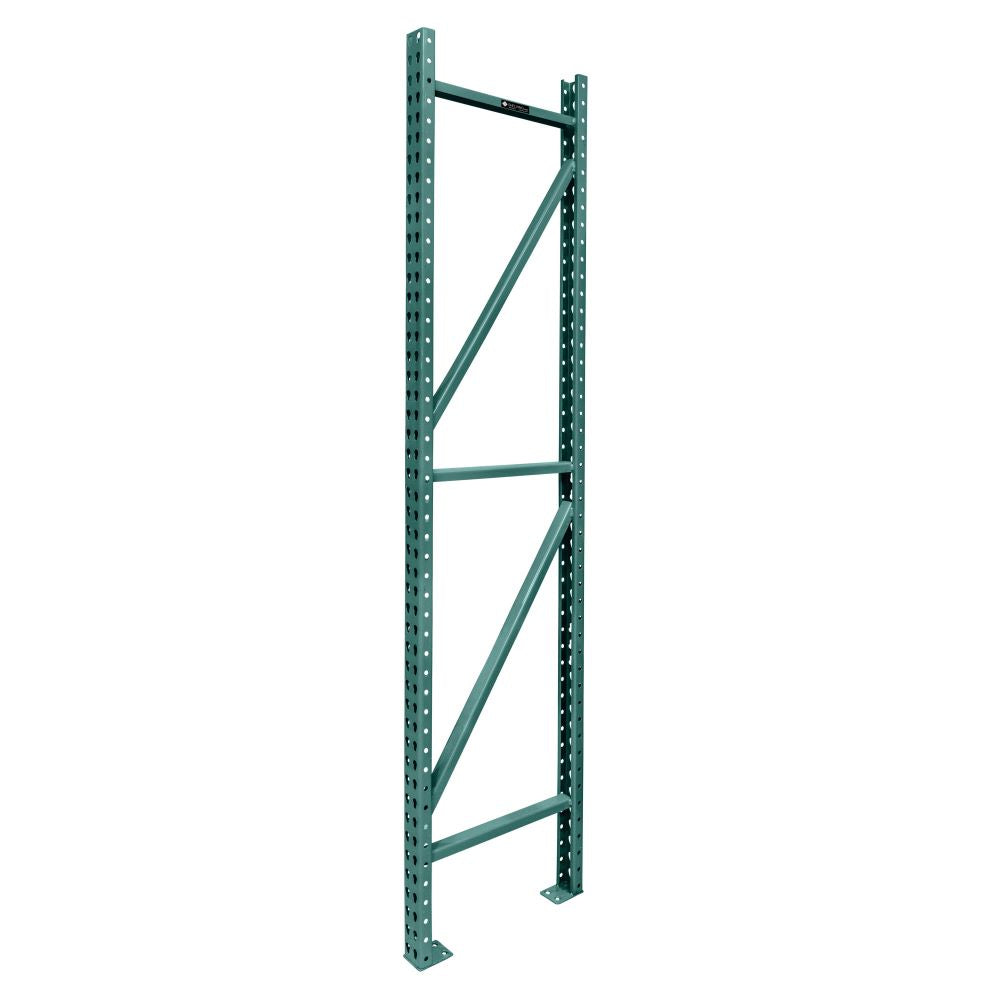

42"d Pallet Rack Upright Frames
42"D 144"H
Teardrop pallet racks are one of the most popular warehouse storage solutions. Ideal for spaces where utilizing the vertical space is just as important as using the floor space. Its innovative design allows for fast and simple assembly without the need for clips or fasteners.
- Made in Michigan
- Great for starting unit or expanding existing system
- Complies with RMI specifications
- Fully welded frames use 55 KSI high-strength steel with a 1.92 to 1 safety factor
- Strong, 14 gauge steel columns and bracing
- Abrasion-resistant finish
- Teardrop punches on 2" centers for easy beam adjustment
- Automatic safety catches lock into teardrop punches on upright
- Includes pre-punched floor plate for easy anchoring
This product ships freight. A representative will contact you with additional shipping costs post-purchase.
For additional details such as weight capacities, visit our Pallet Racking Info Page.
Availability: Stocked in our warehouse. Ships next business day.
Available for FREE pickup at our warehouse. View address
Product Details

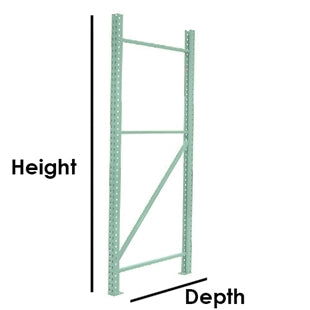

- Dimensions: 42"d x 96-240"h
- Finish: Green, Powder Coated
- Material: Steel
- Manufacturer: Unirak
- Weight: 47-134.10 lbs
- Made in MI, USA
- *Listed weight capacity based on 48" beam spacing
Extended Info
Most sizes are stocked in our warehouse and are ready to ship, allowing you to get your next storage project done ahead of time. Teardrop uprights are a part of the larger pallet racking system that includes step beams and wire decking to organize warehouses and other storage facilities.
Column Dimensions
- UFL18-9642 - 3" x 1-5/8"
- UFL18-12042 - 3" x 1-5/8"
- UFL18-14442 - 3" x 1-5/8"
- UFH29-14442 - 3" x 3"
- UFH29-16842 - 3" x 3"
- UFH29-19242 - 3" x 3"
- UFH29-24042 - 3" x 3"
Build Your Own Storage
Don't see what you need for your space? We have over one million configurable options. Begin building on your own or contact one of our storage experts today.
