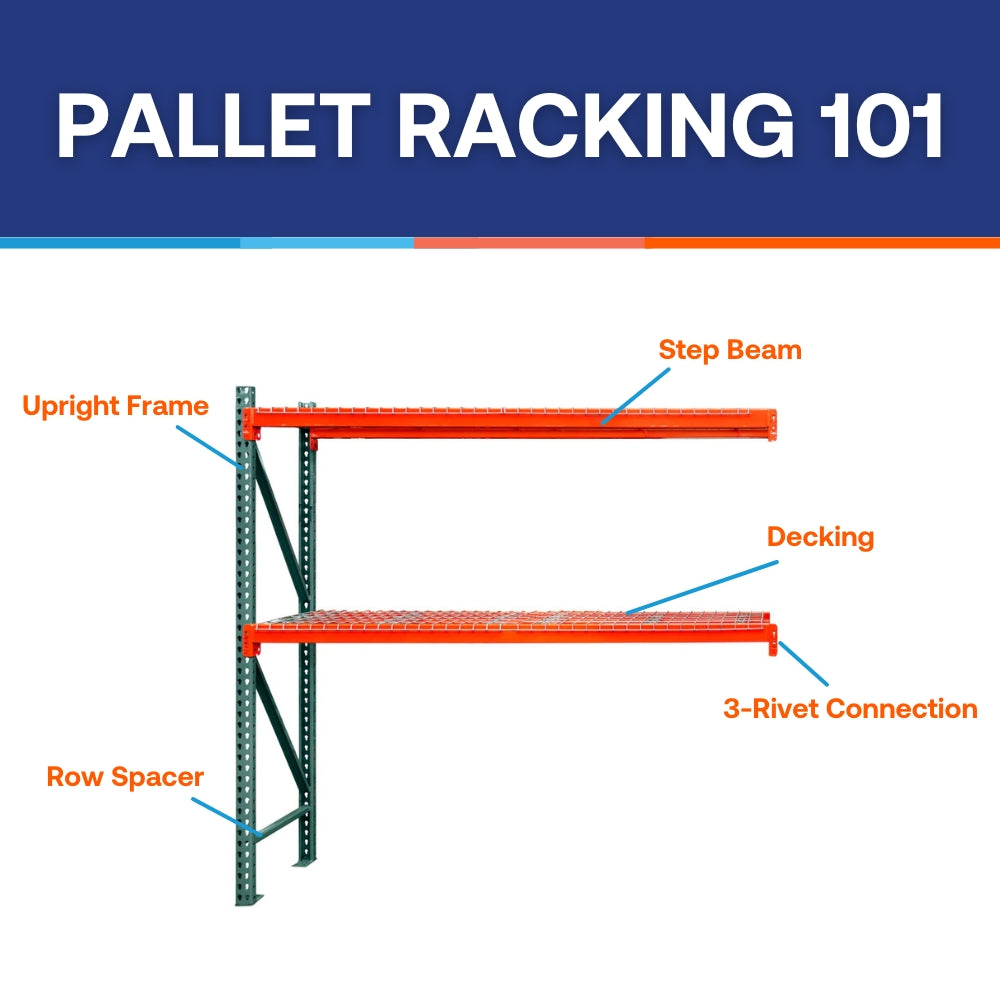

3-Tier Teardrop Pallet Rack Add-On Units w/ Wire Decking - Standard Duty - 48"d x 144"h
48"D x 96"W x 144"H
Regular price
Starting at
$714.63
Regular price
Our powder-coated teardrop pallet rack add-on units with wire decking allow you to scale up your existing racking setup as your business grows, enhancing both storage capacity and workplace safety.
- Expands existing pallet rack horizontally for more storage space
- Durable high-gloss powder coat finish resists abrasion
- Upright punched on 2" centers for easy beam adjustment
- Beams with 3-rivet connection and safety clips for rack integrity
- Galvanized wire decking permits visibility and air, light, and sprinkler penetration
- Also available without wire decking here
Availability: Stocked in our warehouse. Ships next business day.
Available for FREE pickup at our warehouse. View address
| Product | width | Price | Qty |
|---|---|---|---|
48"d x 96"w x 144"h SD 3-Tier Teardrop Pallet Rack Add-On Unit - Wire Decking - 3-1/2"h Beams - 3,385 lb Capacity per Level (UASD4896144350WD) | 96 | $739.35 | |
*BEST VALUE* 48"d x 96"w x 144"h SD 3-Tier Teardrop Pallet Rack Add-On Unit - Wire Decking - 4"h Beams - 4,000 lb Capacity per Level (KUPRA4896144400SDWD) | 96 | $714.63 | |
*BEST VALUE* 48"d x 96"w x 144"h SD 3-Tier Teardrop Pallet Rack Add-On Unit - Wire Decking - 4-1/2"h Beams - 5,100 lb Capacity per Level (KUPRA4896144450SDWD) | 96 | $727.65 | |
48"d x 96"w x 144"h SD 3-Tier Teardrop Pallet Rack Add-On Unit - Wire Decking - 5-1/8"h Beams - 7,080 lb Capacity per Level (UASD4896144518WD) | 96 | $824.85 | |
48"d x 96"w x 144"h SD 3-Tier Teardrop Pallet Rack Add-On Unit - Wire Decking - 6"h Beams - 9,135 lb Capacity per Level (UASD4896144600WD) | 96 | $864.15 | |
48"d x 108"w x 144"h SD 3-Tier Teardrop Pallet Rack Add-On Unit - Wire Decking - 4-1/8"h Beams - 4,025 lb Capacity per Level (UASD48108144418WD) | 108 | $839.73 | |
*BEST VALUE* 48"d x 108"w x 144"h SD 3-Tier Teardrop Pallet Rack Add-On Unit - Wire Decking - 5"h Beams - 5,000 lb Capacity per Level (UASD48108144500WD) | 108 | $816.69 | |
48"d x 120"w x 144"h SD 3-Tier Teardrop Pallet Rack Add-On Unit - Wire Decking - 4-5/8"h Beams - 4,340 lb Capacity per Level (UASD48120144458WD) | 120 | $877.95 | |
48"d x 120"w x 144"h SD 3-Tier Teardrop Pallet Rack Add-On Unit - Wire Decking - 5-1/8"h Beams - 5,645 lb Capacity per Level (UASD48120144518WD) | 120 | $909.33 | |
48"d x 144"w x 144"h SD 3-Tier Teardrop Pallet Rack Add-On Unit - Wire Decking - 5-1/8"h Beams - 3,920 lb Capacity per Level (UASD48144144518WD) | 144 | $1,140.93 | |
*BEST VALUE* 48"d x 144"w x 144"h SD 3-Tier Teardrop Pallet Rack Add-On Unit - Wire Decking - 6-1/4"h Beams - 7,000 lb Capacity per Level (UASD48144144625WD) | 144 | $1,057.35 |
Subtotal: $0.00
Product Details
- Meets requirements of the RMI
- Finish: Powder Coated
- Material: Steel
Assembly
- Easy to assemble. No tools required
Tech Specs
| Upright Frame | Capacity - 48" Beam Shelf Spacing |
|---|---|
| 48"d x 144"h, 3" x 1" Column (14 GA) | 16,000 lbs |
| Step Beams | Capacity per Pair of Beams |
| 96"w x 3-1/2"h (14 GA) | 3,385 lbs |
| 96"w x 4"h (16 GA) | 4,000 lbs |
| 96"w x 4-1/2"h (16 GA) | 5,100 lbs |
| 96"w x 5-1/8"h (14 GA) | 7,080 lbs |
| 96"w x 6"h (14 GA) | 9,135 lbs |
| 108"w x 4-1/8"h (14 GA) | 4,025 lbs |
| 108"w x 5"h (14 GA) | 5,000 lbs |
| 120"w x 4-5/8"h (14 GA) | 4,340 lbs |
| 120"w x 5-1/8"h (14 GA) | 5,645 lbs |
| 144"w x 5-1/8"h (14 GA) | 3,920 lbs |
| 144"w x 6-1/4"h (14 GA) | 7,000 lbs |
Build Your Own Storage
Don't see what you need for your space? We have over one million configurable options. Begin building on your own or contact one of our storage experts today.
