3-Tier Teardrop Pallet Rack Add-On Units - Standard Duty - 36"d x 144"h
36"D x 108"W x 144"H
Pallet racking can be extended at any time, thanks to its modular design. Our pre-configured Unirak add-on units allows your storage to scale with your business and include all needed components in one easy purchase.
*Please note, unit does not include wire decking.
- Made in Michigan
- Extends existing racking horizontally to increase storage space
- Meets requirements of the RMI
- 55 KSI high-strength steel construction
- Durable high-gloss powder coat finish resists abrasion
- Upright is punched on 2" centers for easy beam adjustment
- Beams have 3 rivet connection and safety clips to assure secure locking and rack integrity
- 1-5/8" step within beam accommodates decking
For weight capacities, please see chart below.
Availability: Stocked in our warehouse. Ships next business day.
Available for FREE pickup at our warehouse. View address
Product Details
- Dimensions: 36"d x 96-144"w x 144"h
- Finish: Powder Coating
- Material: 14 Gauge Steel
- Manufacturer: Unirak
- Made in MI, USA
- *Does not include wire decking
Includes

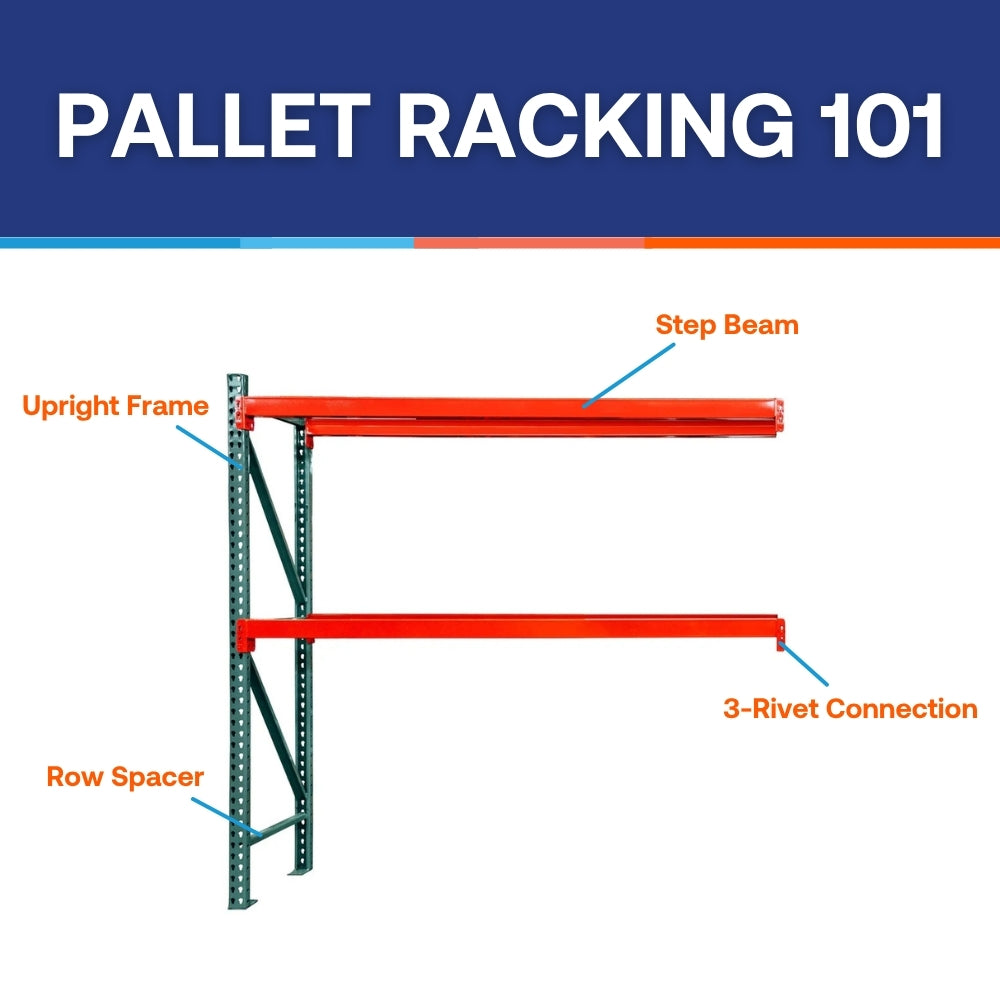

- (1) 36"d x 144"h Vista Green Standard Duty Upright Frame
- (6) Safety Orange Step Beams (size based on selected option above)
Assembly
- Easy to assemble
- No tools required
Tech Specs
| Upright Frame | Weight Capacity - 48" Beam Shelf Spacing |
|---|---|
| 36"d x 144"h | 16,000 lbs |
| Step Beams | Weight Capacity per Pair of Beams |
| 96"w x 3-1/2"h | 3,385 lbs |
| 96"w x 4-1/8"h | 5,005 lbs |
| 96"w x 5-1/8"h | 7,080 lbs |
| 96"w x 6"h | 9,135 lbs |
| 108"w x 4-1/8"h | 4,025 lbs |
| 108"w x 5-1/8"h | 6,280 lbs |
| 120"w x 4-5/8"h | 4,340 lbs |
| 120"w x 5-1/8"h | 5,645 lbs |
| 144"w x 5-1/8"h | 3,920 lbs |
| 144"w x 6-1/2"h | 7,160 lbs |
Build Your Own Storage
Don't see what you need for your space? We have over one million configurable options. Begin building on your own or contact one of our storage experts today.
