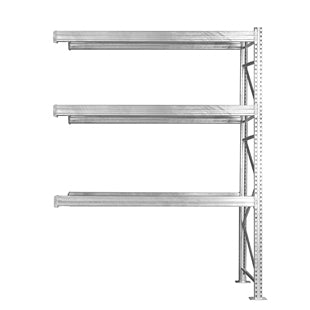

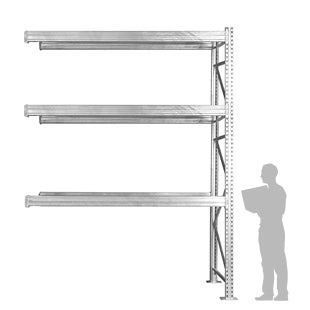

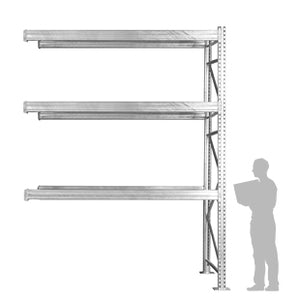

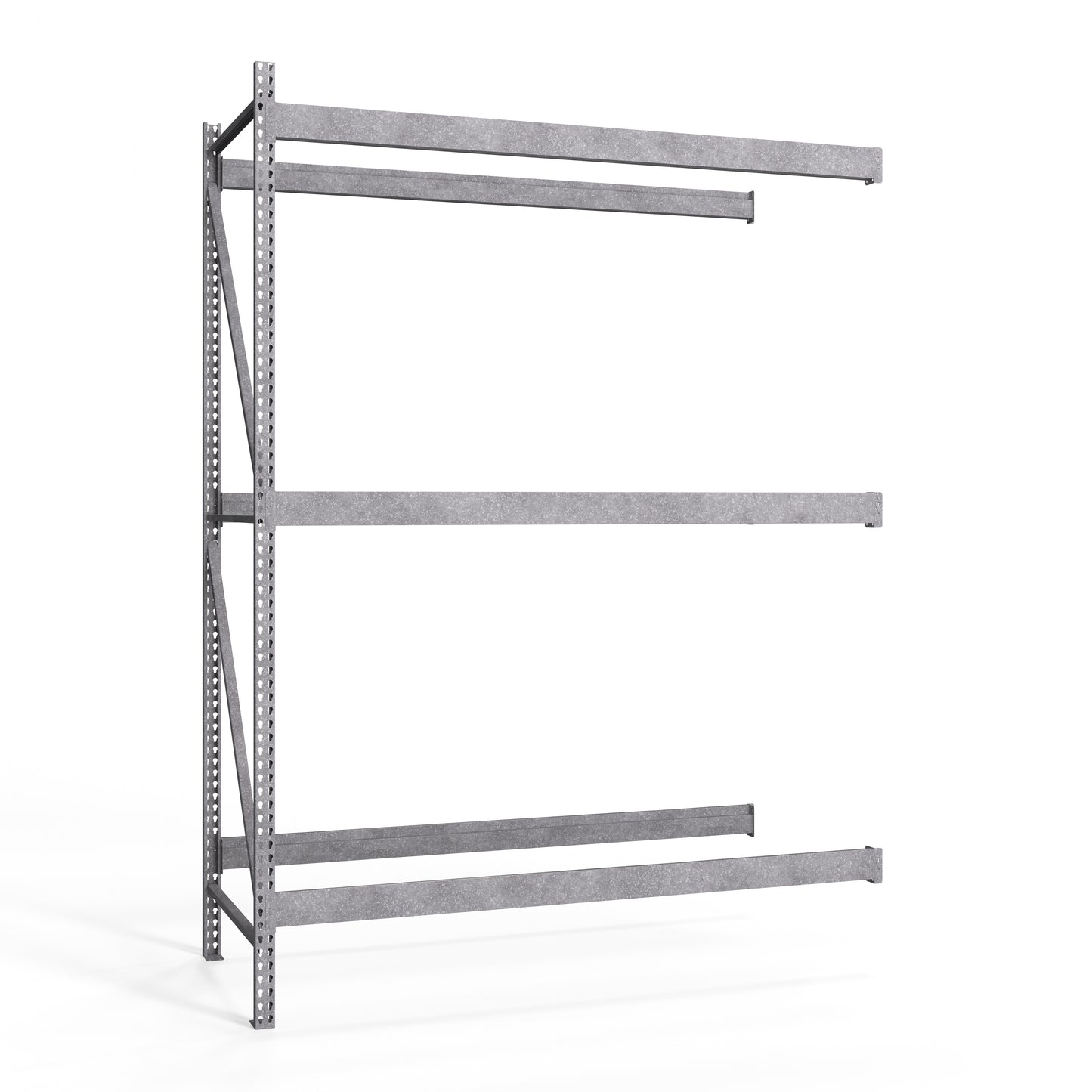

3-Tier Galvanized Teardrop Pallet Rack Add-On Units - 48"d x 144"h
48"D x 108"W x 144"H
These pre-configured add-on units are designed to horizontally extend your existing galvanized teardrop pallet racks for a stable, safe, and economical storage solution. Galvanized racking can withstand harsh environments and is recommended for chemical, cooler, freezer, high humidity, and outdoor applications.
- Extends the length of existing racking for additional storage space
- Meets RMI specifications
- Boltless design is easy to assemble and reconfigure
- Rust and corrosion resistant
- 55 KSI high-strength steel construction

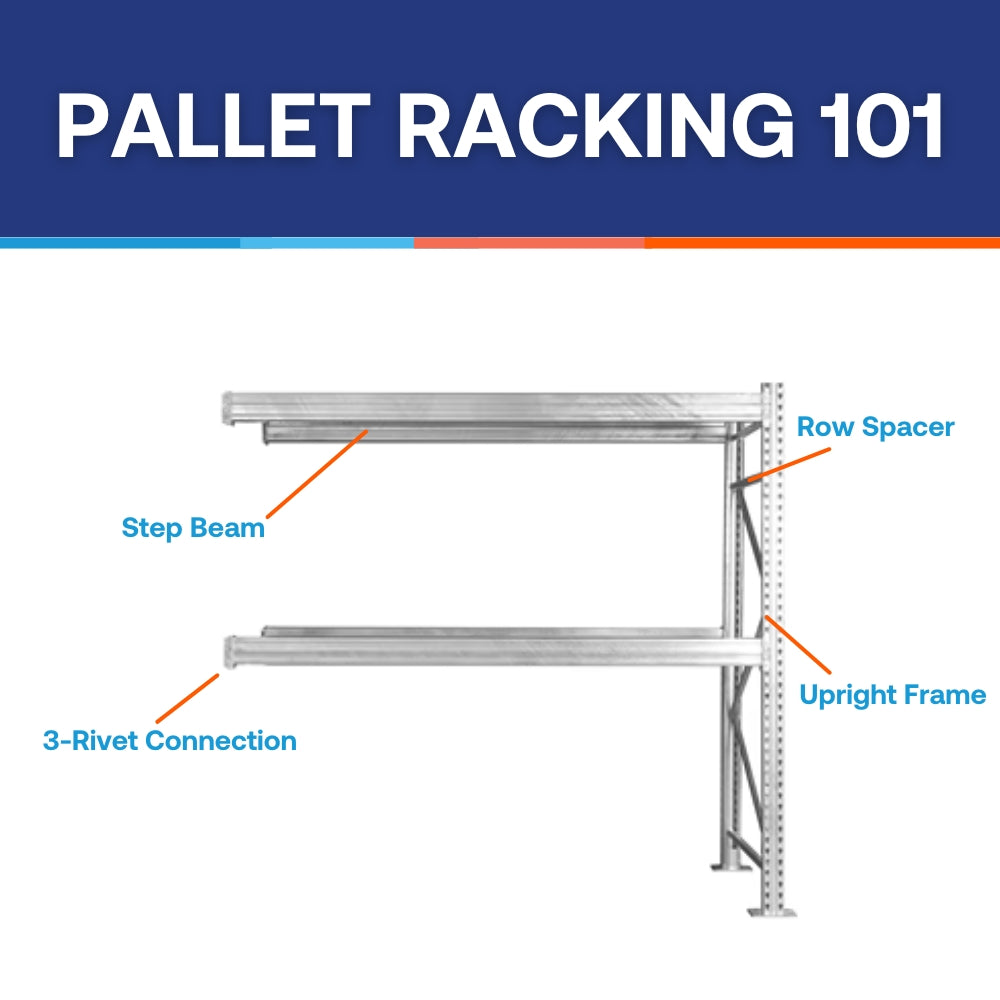

- 3 rivet connection automatically locks beams into teardrop punched uprights
- Beams are adjustable every 2"
- 1-5/8" step accommodates decking
- Ideal storage for harsh environments
For weight capacities, please see chart below.
Availability: Stocked in our warehouse. Ships next business day.
Available for FREE pickup at our warehouse. View address
Product Details
- Dimensions: 48"d x 48-144"w x 144"h
- Material: 14 Gauge Steel
- Weight: 201-435 lbs
Includes
- (1) 48"d x 144"h Galvanized Upright Frame
- (6) Galvanized Step Beams (size based on selected option above)
Assembly
- Easy to assemble
Tech Specs
| Upright Frame | Weight Capacity - 48" Beam Shelf Spacing |
|---|---|
| 48"d x 144"h | 29,000 lbs |
| Step Beams | Weight Capacity per Pair of Beams |
| 48"w x 2-1/2"h | 4,205 lbs |
| 72"w x 3-1/2"h | 4,655 lbs |
| 96"w x 5-1/8"h | 7,080 lbs |
| 108"w x 5-1/8"h | 6,280 lbs |
| 120"w x 5-1/8"h | 5,645 lbs |
| 144"w x 6-1/2"h | 7,160 lbs |
Build Your Own Storage
Don't see what you need for your space? We have over one million configurable options. Begin building on your own or contact one of our storage experts today.
