Shelving.com
Unirak

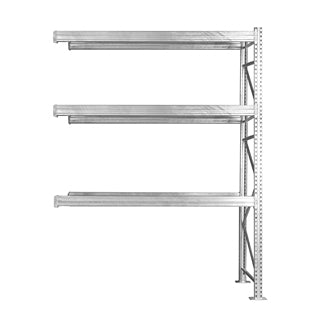

3-Tier Galvanized Teardrop Pallet Rack Add-On Units - 42"d x 144"h
42"D x 108"W x 144"H
These pre-configured add-on units are designed to horizontally extend your existing galvanized teardrop pallet racks for a stable, safe, and economical storage solution. Galvanized racking can withstand harsh environments and is recommended for chemical, cooler, freezer, high humidity, and outdoor applications.
- Extends the length of existing racking for additional storage space
- Boltless design is easy to assemble and reconfigure
- High-strength galvanized steel construction resists rust and corrosion

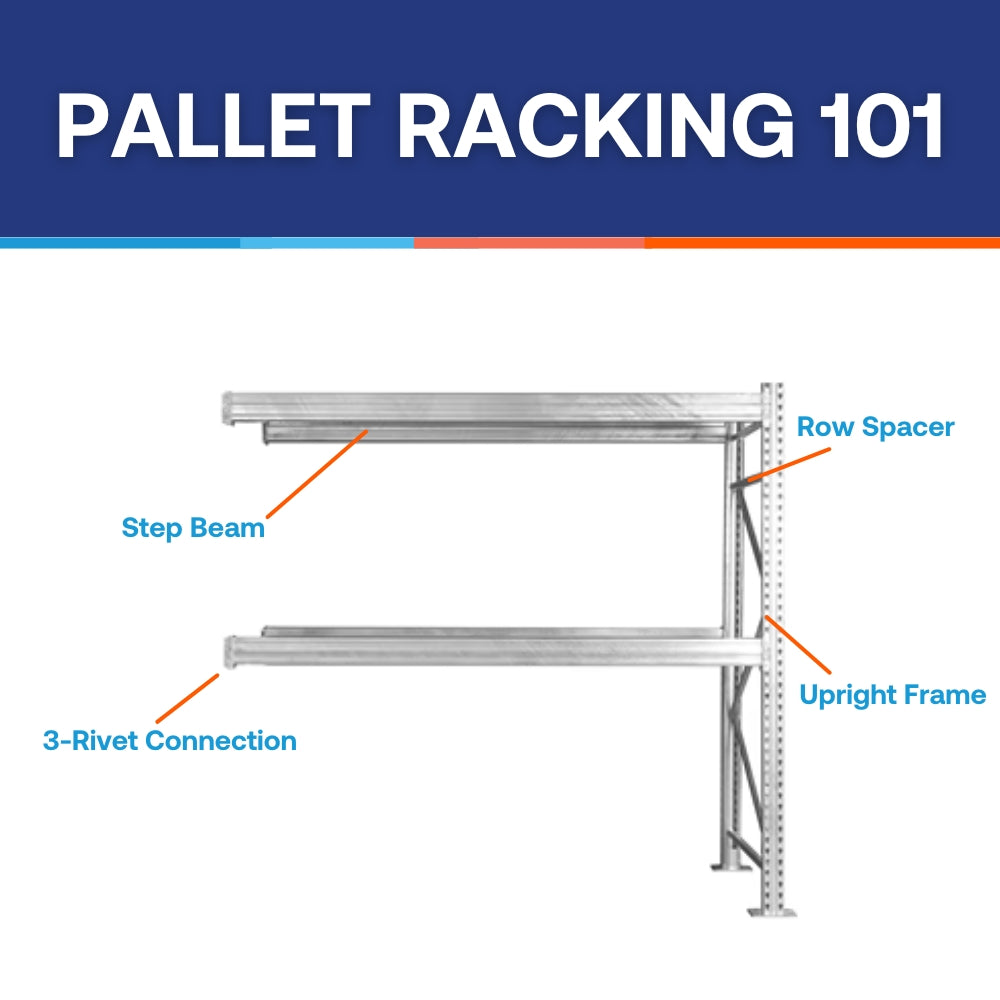

- Beams with 3-rivet connection automatically lock into teardrop-punched uprights and are adjustable every 2"
- 1-5/8" step accommodates decking (sold separately here)
- Meets RMI specifications
For weight capacities, please see Tech Specs below.
Availability: Stocked in our warehouse. Ships next business day.
Available for FREE pickup at our warehouse. View address
Product Details
- Meets requirements of the RMI
- Material: Galvanized Steel
Includes
- (1) 42"d x 144"h Galvanized Upright Frame
- (6) Galvanized Step Beams (size based on selected option above)
Assembly
- Easy to assemble
Tech Specs
Upright Frame | Weight Capacity - 48" Beam Shelf Spacing |
---|---|
42"d x 144"h | 29,000 lbs |
Step Beams | Weight Capacity per Pair of Beams |
48"w x 2-1/2"h | 4,205 lbs |
72"w x 3-1/2"h | 4,655 lbs |
96"w x 5-1/8"h | 7,080 lbs |
108"w x 5-1/8"h | 6,280 lbs |
120"w x 5-1/8"h | 5,645 lbs |
144"w x 6-1/2"h | 7,160 lbs |
Build Your Own Storage
Don't see what you need for your space? We have over one million configurable options. Begin building on your own or contact one of our storage experts today.
