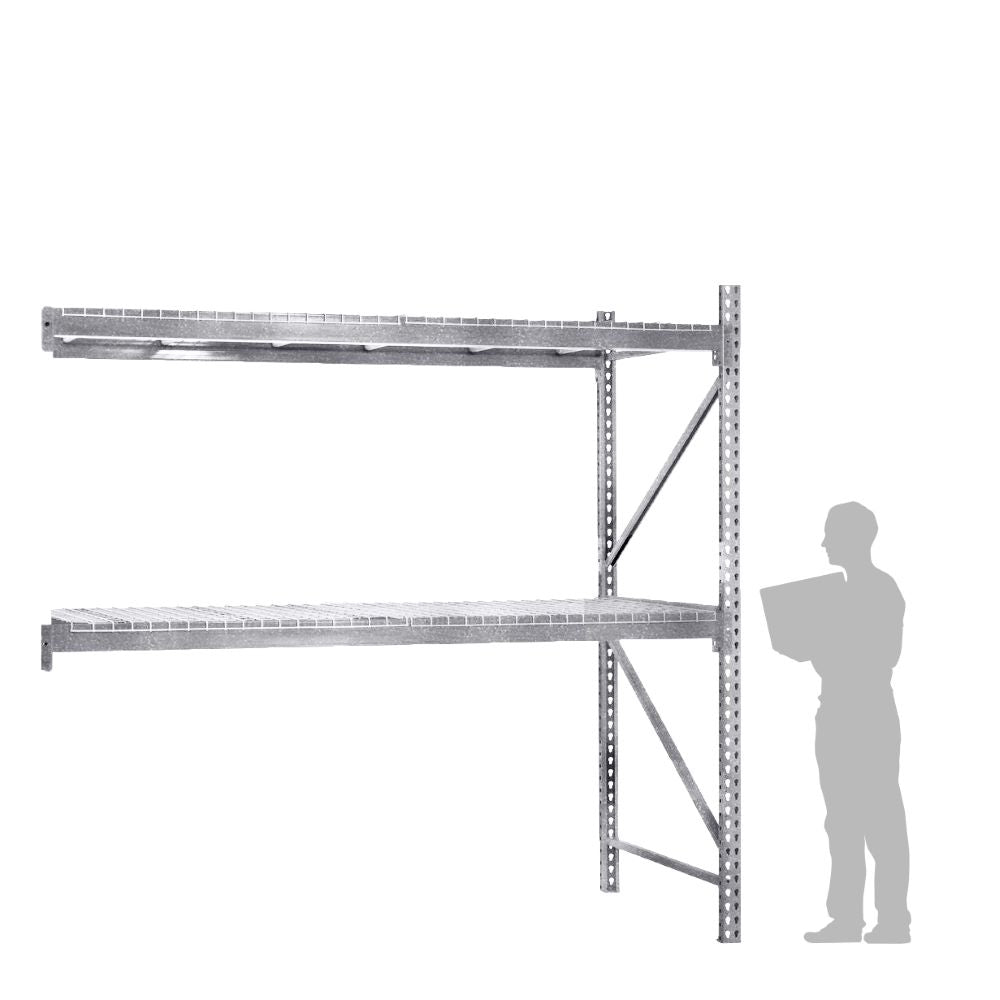

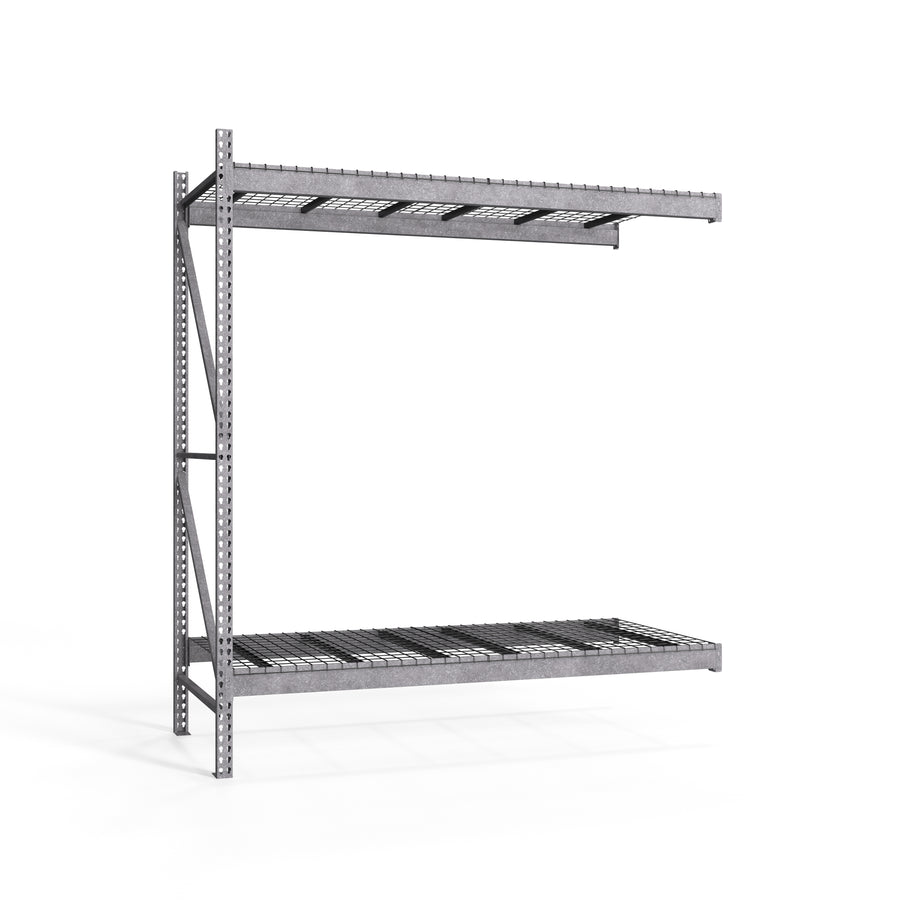

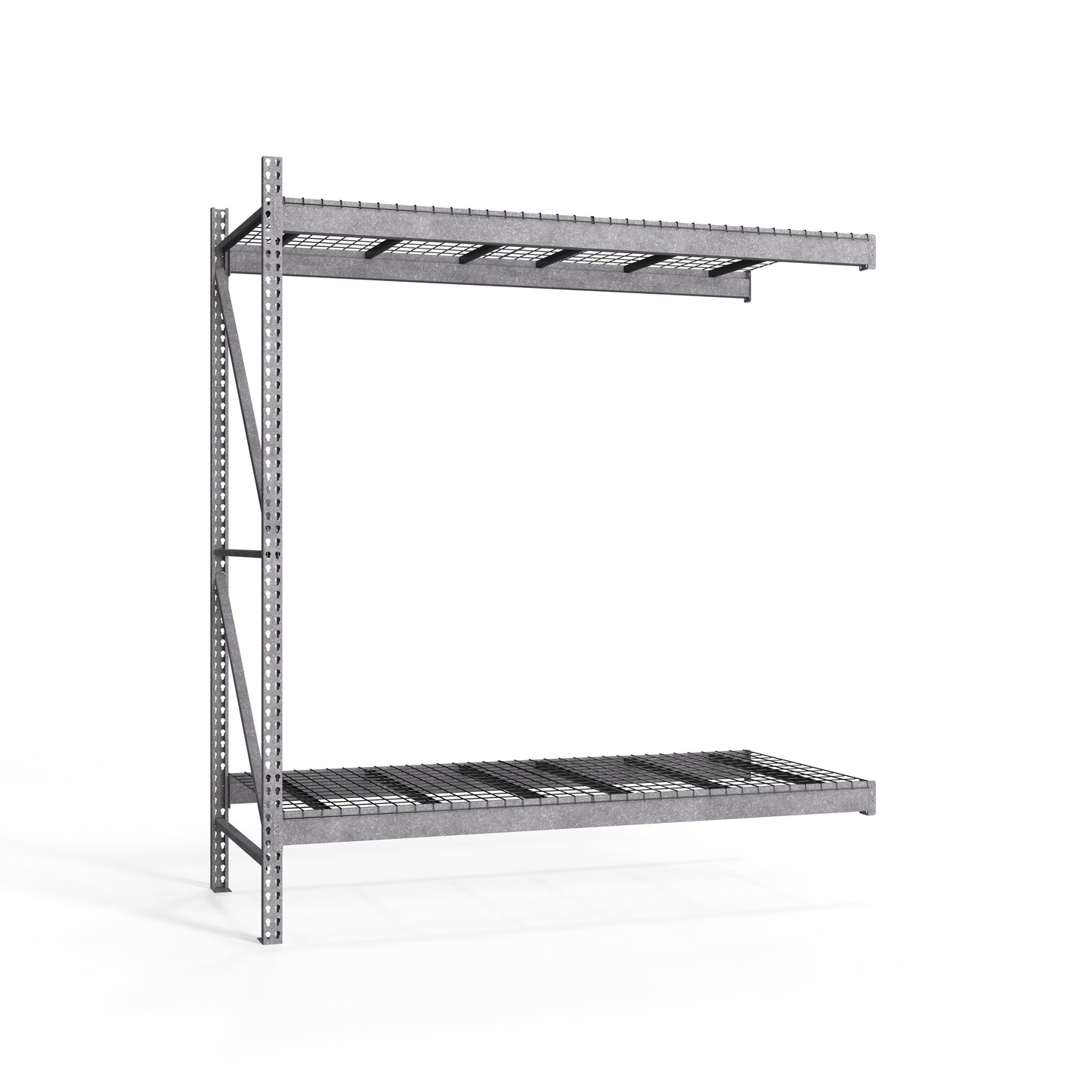

2-Tier Galvanized Teardrop Pallet Rack Add-On Units w/ Wire Decking - 48"d x 120"h
48"D x 48"W x 120"H
Regular price
Starting at
$453.30
Regular price
When addressing evolving organization needs, go for add-on galvanized pallet racking - a solution that expands existing storage space to accommodate increased inventory levels and endures challenging conditions without compromising performance.
- Extends existing rack horizontally for greater storage capacity
- Ideal for harsh environments and recommended for chemical, cooler, freezer, and outdoor applications
- Boltless design for easy assembly and reconfiguration
- High-strength galvanized steel construction resists rust and corrosion

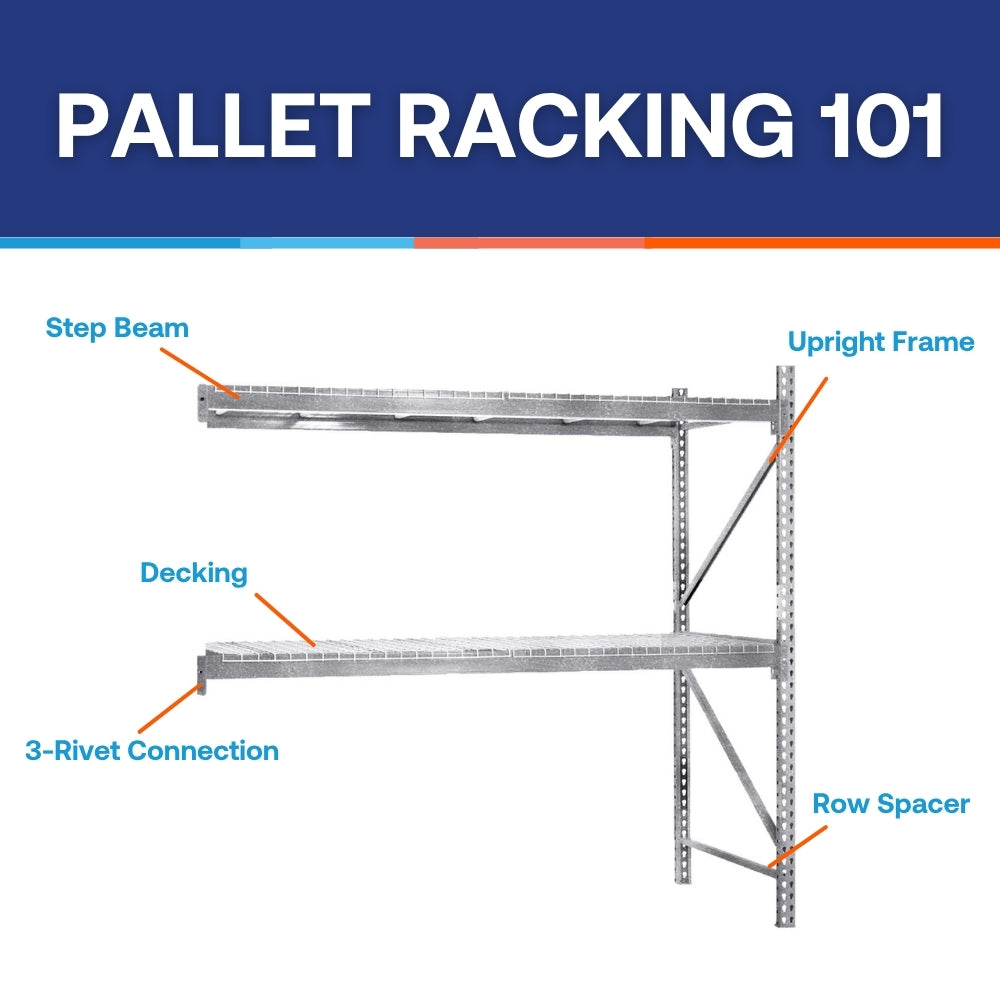

- Beams with 3-rivet connection automatically lock into teardrop-punched uprights and are adjustable every 2"
- Wire decking permits visibility and air, light, and sprinkler penetration
- Also available without wire decking here
- Meets RMI specifications
Availability: Stocked in our warehouse. Ships next business day.
Available for FREE pickup at our warehouse. View address
Product Details
- Meets requirements of the RMI
- Material: Galvanized Steel
Includes
- (1) 48"d x 120"h Galvanized Upright Frame
- (4) Galvanized Step Beams (size based on selected option above)
- Galvanized Wire Decking
- (2) Decks - 48"w Rack
- (4) Decks - 72"w, 96"w, 108"w, and 120"w Racks
- (6) Decks - 144"w Rack
Assembly
- Easy to assemble
Tech Specs
Upright Frame | Weight Capacity - 48" Beam Shelf Spacing |
---|---|
48"d x 120"h | 29,000 lbs |
Step Beams | Weight Capacity per Pair of Beams |
48"w x 2-1/2"h | 4,205 lbs |
72"w x 3-1/2"h | 4,655 lbs |
96"w x 5-1/8"h | 7,080 lbs |
108"w x 5-1/8"h | 6,280 lbs |
120"w x 5-1/8"h | 5,645 lbs |
144"w x 6-1/2"h | 7,160 lbs |
Build Your Own Storage
Don't see what you need for your space? We have over one million configurable options. Begin building on your own or contact one of our storage experts today.
