A. Bulk rack beams: Provide storage levels up to 96" in length.

B. Wire Shelves: Keeps a clean look while providing optimum flow of air and light.

C. Modular Drawers 18"d & 24"d: In standard sizes and 200 or 400lb capacity.

D. Manual drive system: Grab and pull function.

E. Ramp: Available in standard 12" or 24" to accommodate ADA requirements.

F. Modular Platform: Surface mounted, leveled tracks and choice of decking.

G. Open/Mechanical style drive column: Cost effective while providing greater visibility of items stored in the mobile aisle system.

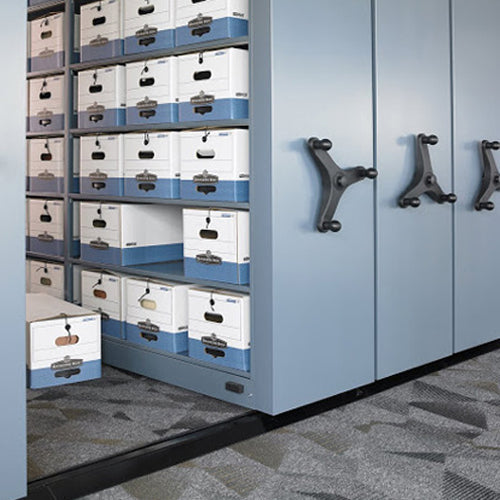

H. Closed/Mechanical style drive: Requires a minimal effort to move 10,000 lbs. of load.

I. Heavy duty wire or solid shelves

J. Fixed Carriage(not shown): Are mounted directly to the tracks or put on the floor using raised foot brackets.

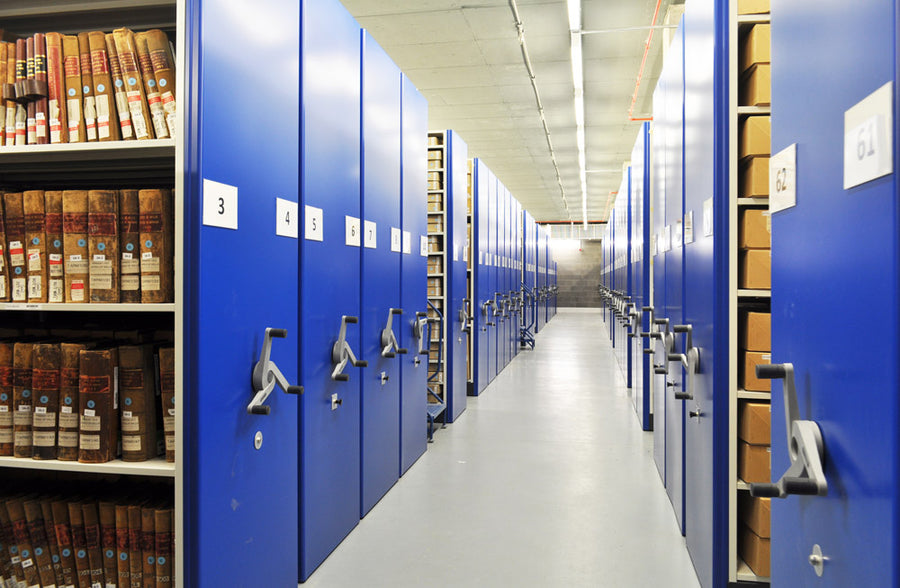

Designing a mobile aisle system is a customer-centric process. To get started, you will need a basic sketch of the area where the mobile aisle system will go, including doorways, columns, and obstacles.

Step 1: Identify your available space and select your carriage size, decking and shelving.

Select the appropriate carriages by width and length. Your 3 options are:

• Fixed Carriage (Available Widths: 12", 15", 18", 24", 30", 36", 48")
• Manual Mobile Carriage (Available Widths: 18:, 24", 30", 36", 48")
• Mechanical Assist Mobile Carriage (Available Widths: 18", 24", 30", 36", 48", 60")
